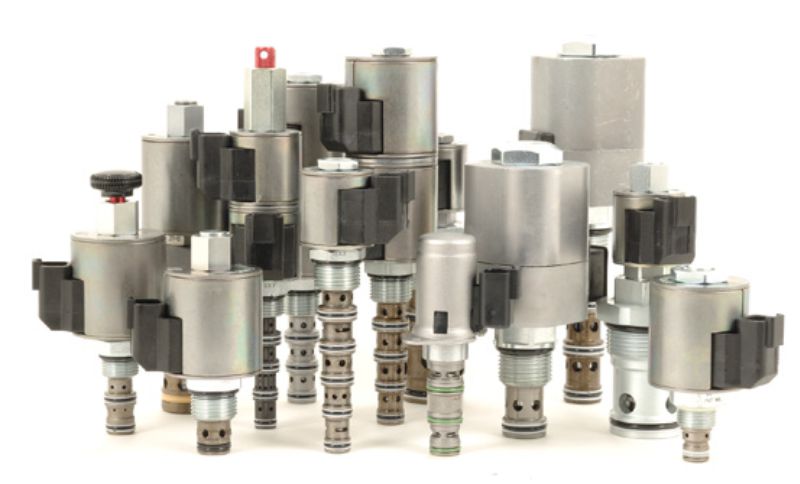

Solenoid On/Off Valves
- Continuous-duty coils with a wide range of voltages,terminations, and diode options.
- Designed for mobile operating environments including low voltage, high and low temperatures, and exposed environmental conditions
- Industry common cavity sizes -07, -08, -10, -12, -16,-20, as well as drop-in-style construction
- Series E water/weather-resistant coils with integral connectors rated up to IP69K
- Manual override option on most models
- Integral position sensors available on some models

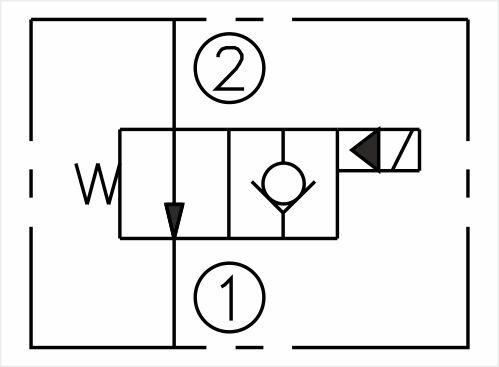

Solenoid valve, piloted poppet type, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SF08-20 | 345 (5000) | 19 (5) |
Solenoid valve, piloted poppet type, normally open
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SF08-21 | 345 (5000) | 30 (8) |

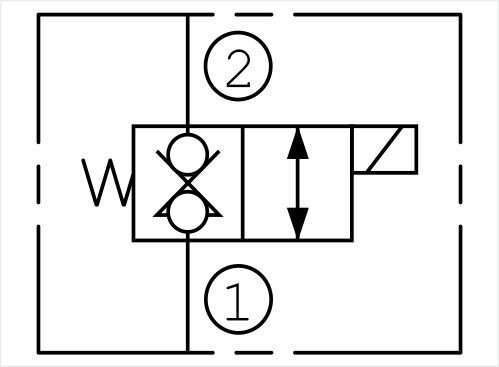

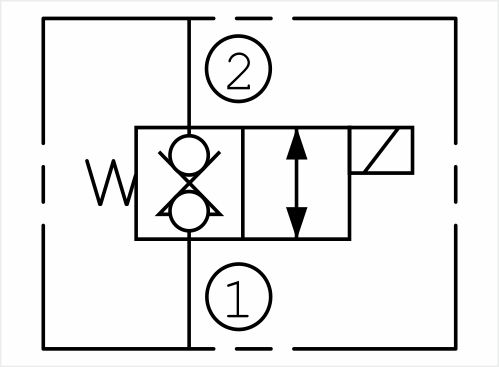

Solenoid valve, poppet type, normally closed,bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SF08-22 | 207 (3000) | 27 (7) |
| HSV10-22 | 350 (5075) | 76 (20) |
| SV10-22 | 240 (3500) | 57 (15) |
| HSV12-22 | 350 (5075) | 114 (30) |
| SV12-22 | 240 (3500) | 114 (30) |
| SV16-22 | 240 (3500) | 151 (40) |

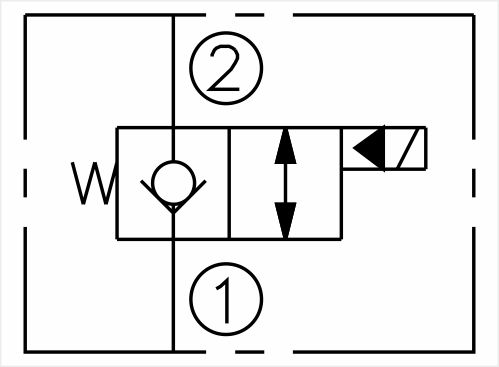

Solenoid valve, poppet type, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-20 | 207 (3000) | 23 (6) |
| SV08-20J | 207 (3000) | 23 (6) |
| HSV10-20 | 350 (5075) | 76 (20) |
| SV10-20 | 240 (3500) | 57 (15) |
| HSV12-20 | 350 (5075) | 114 (30) |
| SV12-20 | 240 (3500) | 114 (30) |
| SV16-20 | 240 (3500) | 95 (25) |

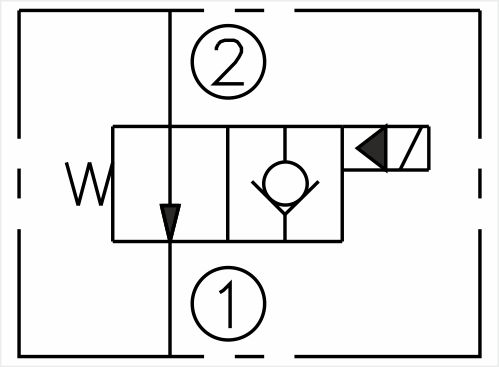

Solenoid valve, poppet type, normally open
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-21 | 207 (3000) | 30 (8) |
| HSV10-21 | 350 (5075) | 76 (20) |
| SV10-21 | 207 (3000) | 68 (18) |
| SV12-21 | 240 (3500) | 114 (30) |
| HSV12-21 | 350 (5075) | 114 (30) |
| SV16-21 | 207 (3000) | 132 (35) |

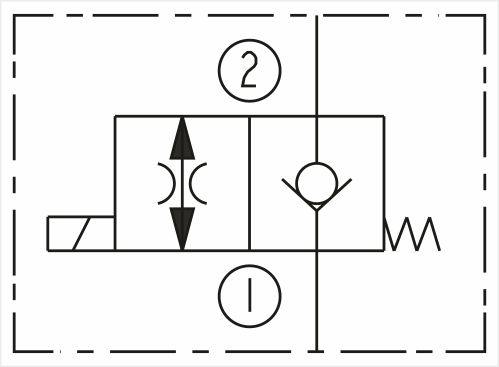

Solenoid valve, needle type, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SL08-22 | 207 (3000) | 1.5 (0.4) |

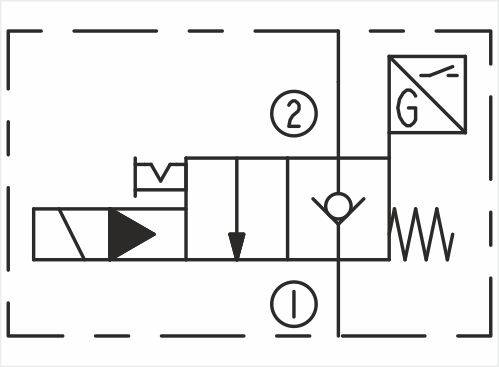

Solenoid valve, poppet type, normally closed,integral position sensor
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV58-P20A | 345 (5000) | 19 (5) |
Solenoid valve, piloted poppet type, normally closed, bidirectiona
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SF08-22 | 345 (5000) | 23 (6) |
| SF20-22 | 345 (5000) | 303 (80) |
Solenoid valve, piloted poppet type, normally open, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SF08-23 | 345 (5000) | 30 (8) |
| SF08-23 | 345 (5000) | 303 (80) |
Solenoid valve, poppet type, normally open, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-23 | 207 (3000) | 30 (8) |
| HSV10-23 | 350 (5075) | 76 (20) |
| SV10-23 | 207 (3000) | 68 (18) |
| SV12-23 | 240 (3500) | 114 (30) |
| SV16-23 | 207 (3000) | 132 (35) |
Solenoid valve,blocking, normally closed, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-28 | 207 (3000) | 11 (3) |
| HSV10-28 | 350 (5075) | 76 (20) |
| SV10-28 | 240 (3500) | 76 (20) |
| HSV12-28 | 350 (5075) | 114 (30) |
| SV12-28 | 240 (3500) | 114 (30) |
| SV20-28 | 207 (3000) | 303 (80) |
| SV38-28 | 207 (3000) | 19 (5) |
Solenoid valve,2-position, 3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV38-31J | 207 (3000) | 11 (3) |
Solenoid valve, spool type, normally closed,bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-24 | 207 (3000) | 17 (4) |
| HSV10-24 | 350 (5075) | 30 (8) |
| SV10-24 | 207 (3000) | 38 (10) |
| SV12-24 | 240 (3500) | 76 (20) |
Solenoid valve, poppet type, normally open
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| HSV10-29 | 350 (5075) | 76 (20) |
| SV10-29 | 240 (3500) | 76 (20) |
| SV12-29 | 240 (3500) | 114 (30) |
Solenoid valve,2-position, 3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-33 | 207 (3000) | 11 (3) |
| SV12-33 | 240 (3500) | 60 (16) |
Solenoid valve, spool type, normally open,bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-25 | 207 (3000) | 10 (3) |
| HSV10-25 | 350 (5075) | 30 (8) |
| SV10-25 | 207 (3000) | 22 (6) |
| SV12-25 | 240 (3500) | 76 (20) |
Solenoid valve,2-position, 3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-30 | 207 (3000) | 15 (4) |
| SV38-30 | 207 (3000) | 18 (5) |
| SV58-30 | 345 (5000) | 15 (4) |
Solenoid valve,2-position, 3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV10-33 | 207 (3000) | 19 (5) |
Solenoid valve,blocking, normally closed, low flow
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-26 | 207 (3000) | 1.9 (0.5) |
| SV38-26 | 207 (3000) | 3.4 (0.9) |
Solenoid valve,2-position, 3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV07-34 | 207 (3000) | 13 (3) |
| SV10-34 | 207 (3000) | 23 (6) |
| SV12-34 | 240 (3500) | 60 (16) |
Solenoid valve,2-position,3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV07-31 | 207 (3000) | 6 (2) |
| SV08-31 | 207 (3000) | 11 (3) |
| SV10-31 | 207 (3000) | 22 (6) |
| SV12-31 | 240 (3500) | 60 (16) |
Solenoid valve,2-position, 3-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV07-35 | 207 (3000) | 11 (3) |
| SV08-35 | 207 (3000) | 11 (3) |
Solenoid valve,poppet type, normally closed, internally piloted, high flow
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV20-S38 | 293 (4250) | 378 (100) |
Solenoid directional valve, 2-position,4-way, open transition
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| HSV10-40R | 350 (5075) | 23 (6) |
| SV12-40R | 240 (3500) | 60 (16) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV12-42 | 240 (3500) | 60 (16) |
Solenoid valve,poppet type, normally closed, internally piloted, high flow
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV38-38 | 207 (3000) | 11 (3) |
Solenoid directional valve, 2-position,4-way, drop-in
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV98-T40 | 30 (435) | 30 (8) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-43 | 207 (3000) | 11 (3) |
| SV10-43 | 207 (3000) | 22 (6) |
Solenoid valve,poppet type, normally open, internally piloted, high flow
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV20-S39 | 293 (4250) | 378 (100) |
Solenoid directional valve, 2-position,4-way, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-41 | 207 (3000) | 13 (3) |
| SV10-41 | 207 (3000) | 26 (7) |
| SV58-41 | 345 (5000) | 26 (7) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-44 | 207 (3000) | 11 (3) |
| SV10-44 | 207 (3000) | 22 (6) |
Solenoid valve,2-position, 3-way,drop-in
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV98-T39 | 45 (650) | 30 (8) |
Solenoid directional valve, 2-position,4-way, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV12-41 | 240 (3500) | 60 (16) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-42 | 207 (3000) | 11 (3) |
| SV10-42 | 207 (3000) | 23 (6) |
Solenoid directional valve, 2-position,4-way, open transition
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-40 | 207 (3000) | 11 (3) |
| SV10-40 | 207 (3000) | 23 (6) |
| SV58-40 | 345 (5000) | 11 (3) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-42 | 207 (3000) | 11 (3) |
| SV10-42 | 207 (3000) | 23 (6) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-45 | 207 (3000) | 11 (3) |
Solenoid directional valve, 2-position,4-way, closed transition
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV10-40A | 207 (3000) | 38 (10) |
Solenoid directional valve, 2-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-46 | 207 (3000) | 11 (3) |
Solenoid directional valve, 3-position,4-way, tandem center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-47A | 207 (3000) | 11 (3) |
| SV10-47A | 240 (3500) | 19 (5) |
Solenoid directional valve, 3-position,4-way, tandem center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV10-47F | 240 (3500) | 15 (4) |

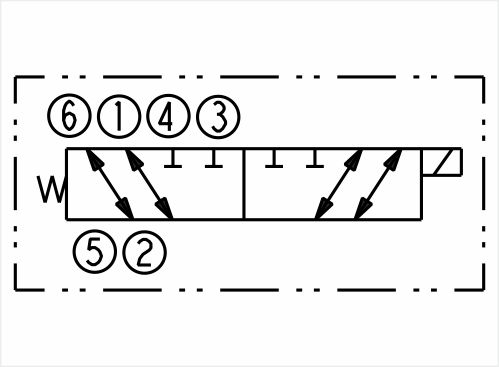

Solenoid selector valve, 2-position,6-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV12-60 | 240 (3500) | 45 (12) |
Solenoid directional valve, 3-position,4-way, open center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-47B | 207 (3000) | 11 (3) |
| SV10-47B | 240 (3500) | 23 (6) |
Solenoid directional valve, 3-position,5-way, closed center,load sense port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV10-57C | 250 (3625) | 20 (5) |
Solenoid selector valve, 2-position,6-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV80-61 | 207 (3000) | 8 (2) |

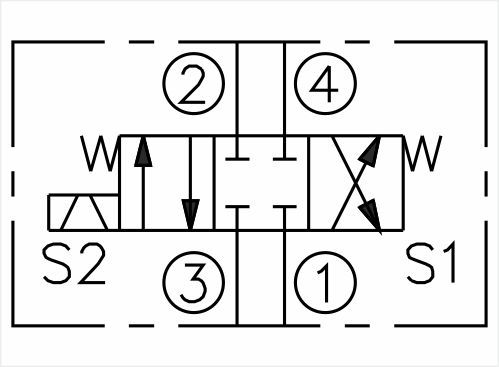

Solenoid directional valve, 3-position,4-way, closed center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-47C | 207 (3000) | 11 (3) |
| HSV10-47C | 350 (5075) | 38 (10) |
| SV10-47C | 240 (3500) | 23 (6) |
| HSV12-47C | 350 (5075) | 57 (15) |
Solenoid directional valve, 3-position,5-way, motor center,load sense port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV10-57D | 250 (3625) | 20 (5) |

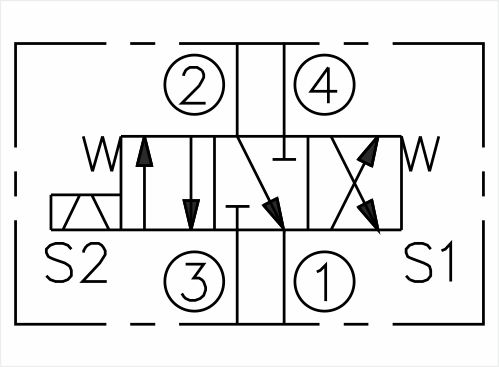

Solenoid directional valve, 3-position,4-way, motor center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-47D | 207 (3000) | 11 (3) |
| HSV10-47D | 350 (5075) | 34 (9) |
| SV10-47D | 240 (3500) | 23 (6) |

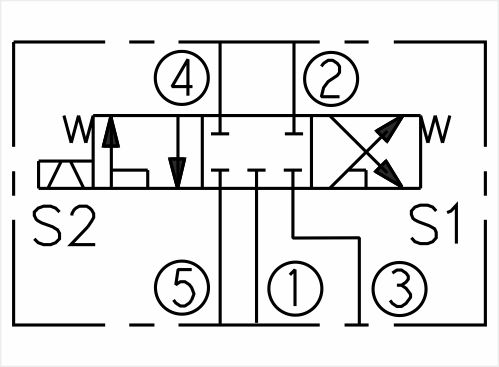

Solenoid directional valve, 3-position,5-way, closed center,brake release port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-58C | 207 (3000) | 13 (3) |
| SV10-58C | 250 (3625) | 30 (8) |
Solenoid directional valve, 3-position,4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-47E | 207 (3000) | 11 (3) |
| SV10-47E | 250 (3625) | 30 (8) |

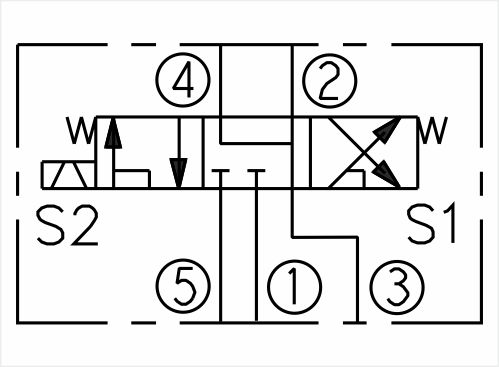

Solenoid directional valve, 3-position,5-way, motor center,brake release port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV08-58D | 240 (3500) | 13 (4) |
| SV10-58D | 250 (3625) | 30 (8) |

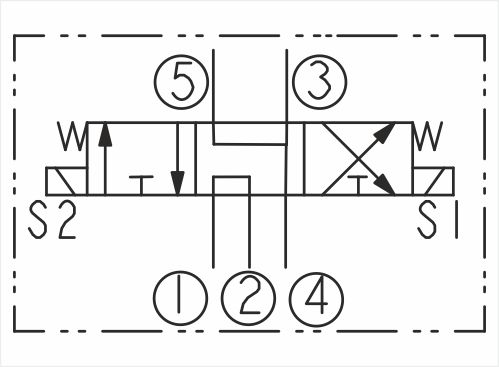

Solenoid directional valve, 3-position,5-way, motor center,power beyond port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SV10-59D | 207 (3000) | 15 (4) |
