The XD-Series Indexer Servo Drive is the most advanced Indexer in the industry and features an easy-to-use, straight-forward commissioning software and graphical user interface.Communication with the XD Drive is accomplished using industry standard protocols.
Ormec
Innovative motion control solutions
Consult with our experts in the aerospace, automotive, energy, medical, pharmaceutical, food and beverage, textile, paper, packaging, metal forming and converting industries. Our high performance multi-axis and single axis motion control products excel in the most demanding applications including packaging, converting, labeling, web and material handling, as well as general assembly and winding.
Our motion control systems integrate motion controllers, logic control, servo drives, servo motors, linear motors, actuators, HMIs and I/O into cost-effective factory automation solutions. The SMLC motion controller, offers CoDeSys IEC 61131-3 programming, PLCopen motion function blocks, industrial Ethernet network solutions and FireWire-based drive networking.
Partner with ORMEC, an ISO 9001:2015 certified company, for your total system solution.
SMLC
Key Features
- 3 Models 3, 8 and 16 Axes
- Compatible with ORMEC ServoWire drives
- IEC 61131-3, all 5 programming languages
- Application Specific Function Blocks
- Motion Control and PLC machine control in one package
- Powerful and Robust
- Factory Floor networking options
The ServoWire Motion & Logic Controller(SMLC)is ORMEC's flagship controller and has all of the latest technologies needed for complete machine control. The SMLC combines ORMEC motion engine with a high performance PLC.
Indexer Servo Drives
ORMEC offers a full line of advanced Indexer Servo Drives. The XD Indexer is full-featured with capabilities to perform Indexing, Camming, Gearing, Registration and more. The power range of the XD-Indexer is the widest in the industry with 200V and 400V Series Models. The 200V Series supports 120-240V from 3 to 60 Amp and the 400V Series supports 460V from 3 to 50 Amp
Servo Drives
ORMEC offers a range of servo drive families.The S2D-Series Drive family is fully compatible with the SMLC family of controllers. These drives communicate with the SMLC through IEEE 1394b FireWire digital communications.
The R-Series Replacement Drive family is a cost effective retrofit option for aging and legacy drives. The G-Series servo drive is the drive to use in analog servo systems. These systems are typically older systems. ORMEC has made a commitment to our customers with these systems.
Expect continued support from ORMEC as you keep this important equipment operational. We also supply replacement drives for our competitors' aging drives. SD, SM and SW drive families are no longer supported.
Servo Motors
M-Series Servo Motors
Key Features
- Continuous Stall Torques from 1.4 to 845 in-lb
- Peak Torque from 4.4 to 2413 in-lb
- Output Power from 50 to 15,000 watts
- High Maximum Speeds from 2,000 to 5,000 RPM
- 200 VAC and 400 VAC operation
- UL approved and CE marked
- RoHS compliant
- Torque Ripple & Cogging- minimal
- IP-65 rated
- Fail-Safe Holding Brakes- optional
The M-Series servo motor family is a comprehensive line of 200V and 400V motors. This family of motors delivers high-performance, low inertia, and high torque in a compact motor package. The M-Series is a cost effective solution for high performance servo systems.More Details
Key Features
- 3 Continuous Stall Torques from 2.8 to 1,240 lb-in(.3 to 140 N·m)
- High Peak Torques from 8.5 to 2,124 lb-in (10 to 240 N·m)
- Output Power from 100 to 22,000 watts(.1 to 30 HP)
- High Maximum Speeds from 2,000 to 6,000 RPM
- Incremental Encoder or Absolute Encoder
- Torque Ripple & Cogging- minimal
- IP-67 rated
- Fail-Safe Holding Brakes- optional
- 230/460 VAC

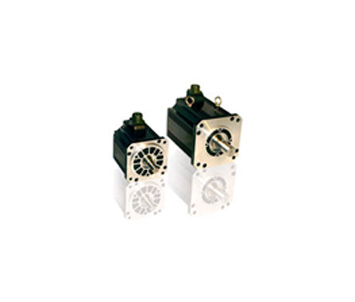

N-Series Servo Motors
ORMEC’s N-Series AC brushless servo motors provide high torque-to-inertia ratios, excellent continuous torque and peak torque performance in a compact design. N-Series motors feature extremely durable construction and include heavy duty bearings. Rugged MS connectors provide reliable interconnections. More Details
L-Series Linear Motors
Key Features
- 3 Single or Dual Guide Ironless/Iron core linear motor assemblies
- Stroke from 100mm to 2.5m
- Direct Drive
- Low Settling Time
- Zero Backlash
- Zero Cogging
- Integrated with linear encoder and guidance system
- Linear Encoder Resolutions of 5 um, 1.0 um and 0.1 um
- Speeds of 5m/sec
- Acceleration up to 10G
ORMEC delivers high performance with L-Series Linear Motors. The DGL is a dual guide linear motor assembly and the SGL is a single guide motor assembly. Both motors are housed in rugged and reliable rails with a clean sleek look. These motors are easily integrated into the SMLC / SD Drive control system.More Details
KMD-Series Electromechanical Actuators
KMD-Series Electromechanical Actuators ORMEC’s KMD Series Electromechanical Actuators provide a powerful and efficient alternative to hydraulic or roller screw actuator applications
Excellent Maximum Force and Dynamic Load ratings are superior to other similarly sized and configured electro-mechanical actuators.
Extremely durable construction including world class ball screw technology and heavy-duty ball bearing assembly providinKMD-Series Electromechanical Actuators g quieter and higher performance efficiencies.
Increased life expectance and side load capacity exceeding that found in correspondingly sized actuators.
Key Features
- Maximum Force range 18,000 to 30,000 lbf (80 to 133kN)
- Dynamic Load Rating range from 40,000 to 69,400 lbf (178 to 309 kN
- Side Load Capacity of 1,000 lbf (4.45 kN)
- Application Specific Function BlocksHigh Maximum Linear Speeds up to 23.6 in/Sec
- 3-Belt Ratios
- Powerful and Robust
- Optional Male or Female Output Connection
- Multiple Mounting Options
- Standard Oil Lubricated Ball Screw with Oil Level sight gage.
- Multiple Rod Mounting arrangement
- Equal Extend/Retract Performance
- Internal end of travel cushions.Optional Normally Closed Overtravel and Home Switches
- Configure with ORMEC Standard Motors or 3rd Party Motors
Performance
- Five Year Warranty!
- Compatible with ORMEC ServoWire drives
- The performance parameters of the KMD Electromichanical actuators are a direct function Servo/Servo Amplifier Combination.
- The performance specifications provided are based upon the combination of the KMD-Series Electromechanical Actuators with ORMEC motors.
- Consult with your ORMEC Sales/Application Group to determine requirements and Performance Specifications with motors not listed.
