Control Valve EM Actuator
Linear (Roller Screw) & Rotary Actuators, High Accuracy, High Force, High Speed & Torque Economical Valve Control Mechanism Retrofitmentfor any Process industries

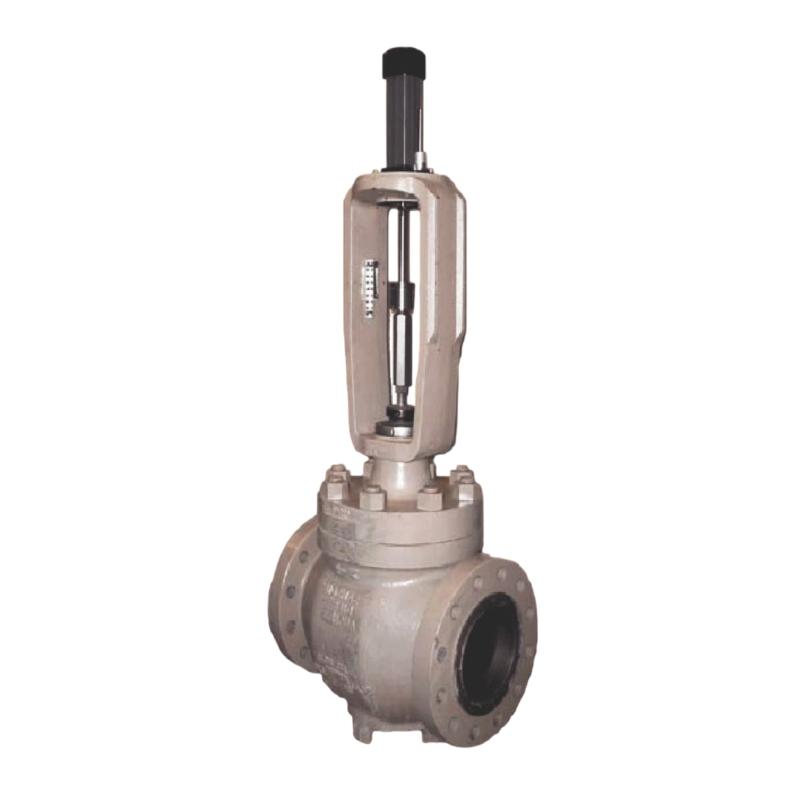

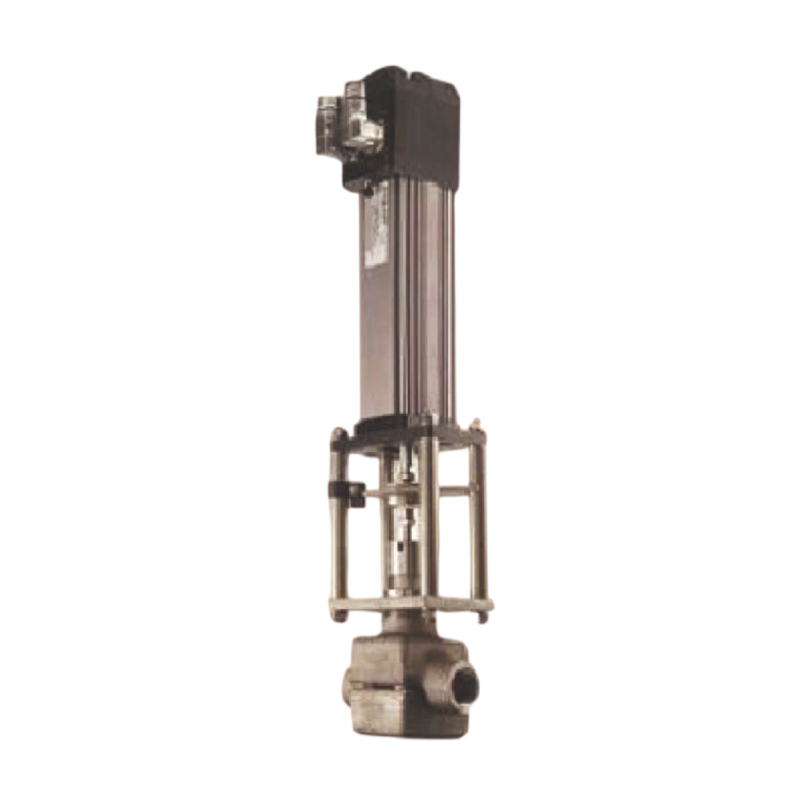

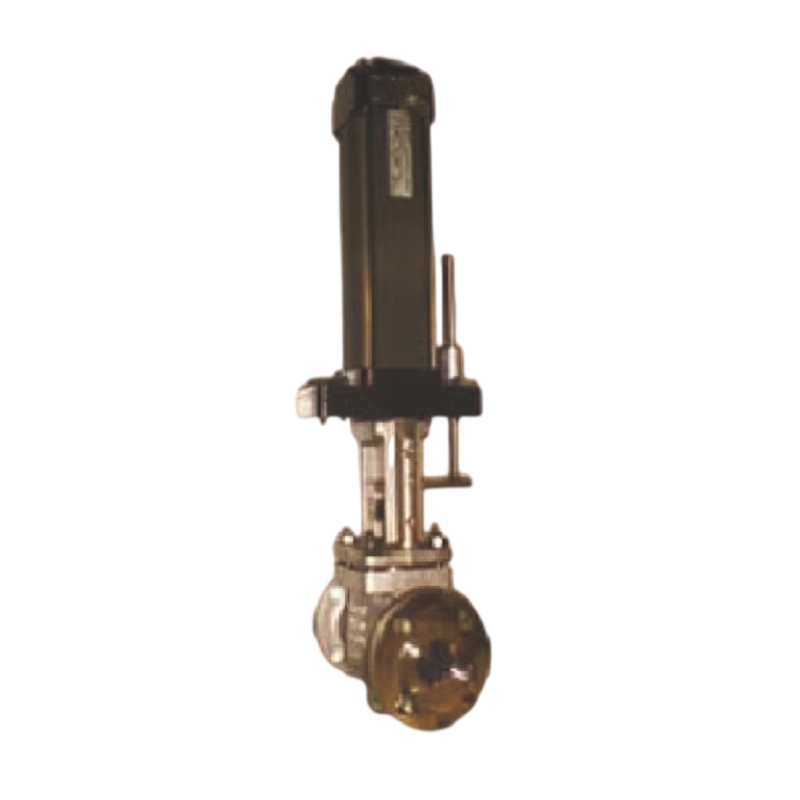

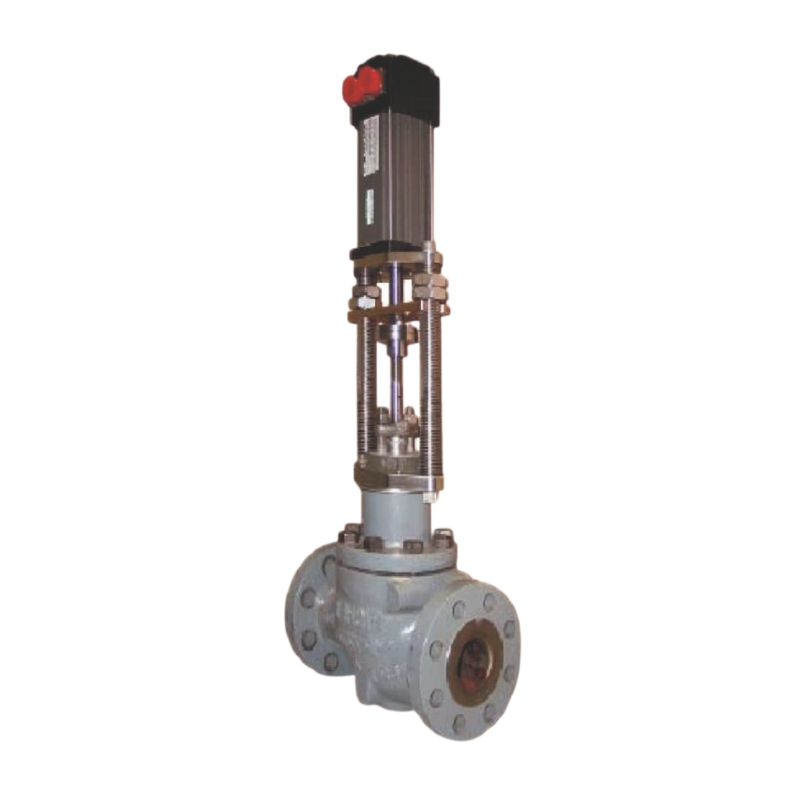

Retrofits for any valve Manufacturer:

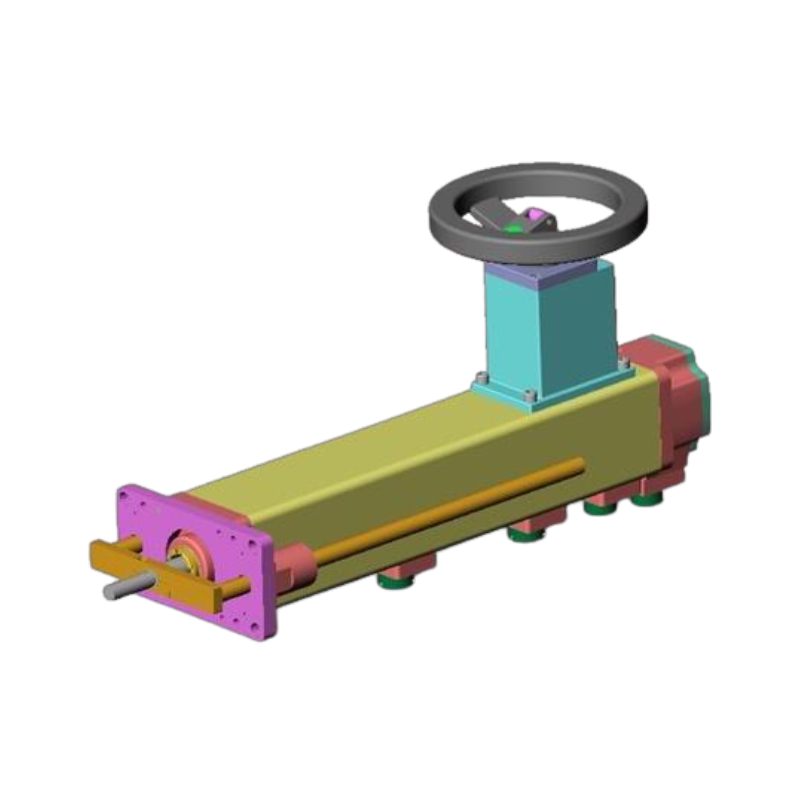

Linear /Rotary Actuator Features
- Up to 12,400 lbs/force / Torque –upto500Nm
- Resolution to 20,000 incr./inch
- Stroke to 18 in.
- Life exceeding 2 million full-stroke operations at rated load
- Speed up to 40 in/sec
- Fast response (typical 2 in. shift time of 0.2 sec)
- Absolute feedback (option)
- Liquid cooling (option)
- Stainless steel (option)
- Handwheel(option)
