WELCOME TO THE WORLD OF MEASUREMENT!

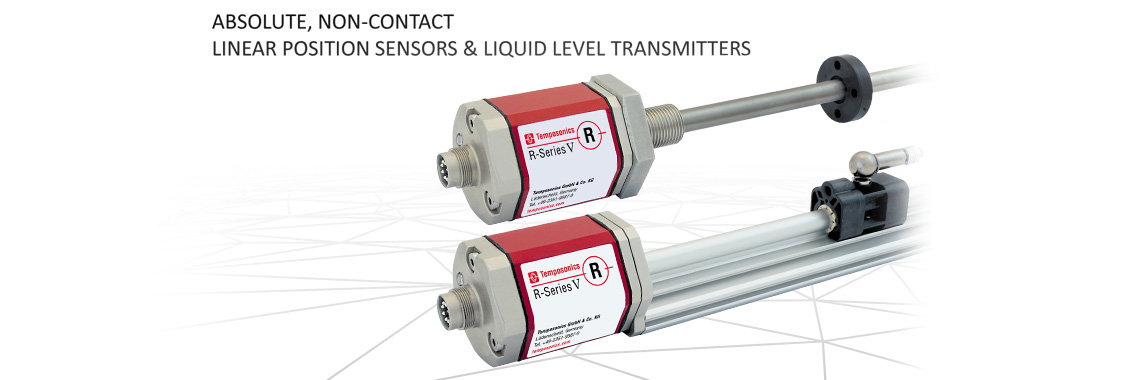

Temposonics is the pioneer and leading manufacturer of magnetostrictive technology for measuring position and/or liquid level. Our sensors permit high precision and dynamic position and/or speed measurement in state-of-the-art automation and safety-critical applications.
OUR TECHNOLOGY
Our core technology Temposonics® is based on the physical principle of magnetostriction. With this non- contact measurement technology, users can rely on position and velocity feedback of the moving parts in machines, which increases productivity and safety.

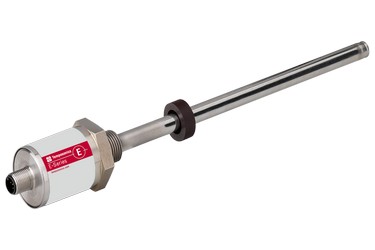

EH Sensor
- Rod-style for cylinder applications
- Stroke Range: 50 to 2540mm
- Output Available: Current, Voltage Start/Stop, SSI, CANOpen, I/O Link.
- Operating Temperature : -40 to +750C

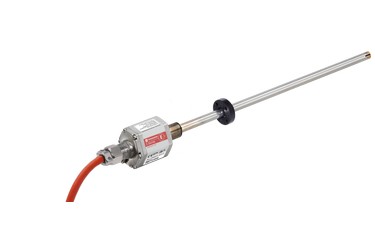

ET Sensor
- ATEX certified & high temperature resistant
- Stroke Range: 50 to 3000mm
- Output Available: Current, Voltage,Start/Stop, SSI
- Operating Temperature :

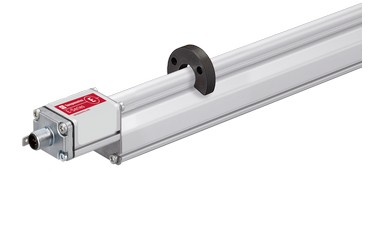

EP Sensor
- Profile-style
- Stroke Range: 50 to 3000mm
- Output Available: Current, Voltage,Start/Stop, SSI, CANOpen, I/O Link.
- Operating Temperature : -40 to +750C

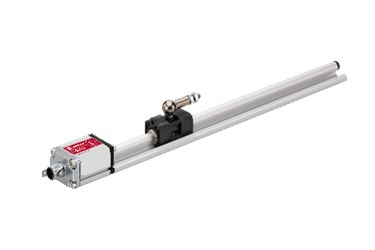

EL Sensor
- Ultra low profile-style
- Stroke Range: 50 to 3000mm
- Output Available: Current, Voltage, Start/Stop, SSI, CANOpen, I/O Link.
- Operating Temperature : -40 to +750C

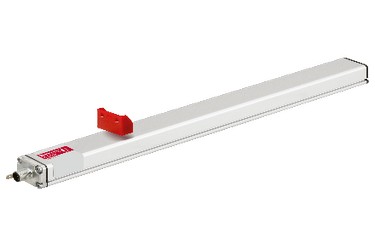

EP2 Sensor
- Flat profile
- Stroke Range: 50 to 3000mm
- Output Available: Current, Voltage, Start/Stop, SSI, CANOpen, I/O Link.
- Operating Temperature : -40 to +750C

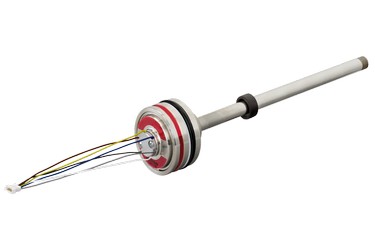

EE Sensor
- For Embedded cylinder applications
- Stroke Range: 50 to 2540mm
- Output Available: Current
- Operating Temperature : -40 to +850C

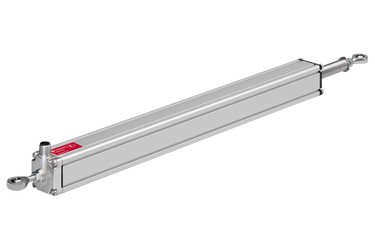

ER Sensor
- Rod & cylinder housing with strong piston for flexible mounting
- Stroke Range: 50 to 1500mm
- Output Available: Current, Voltage, Start/Stop, SSI, CANOpen, I/O Link.
- Operating Temperature : -40 to +750C

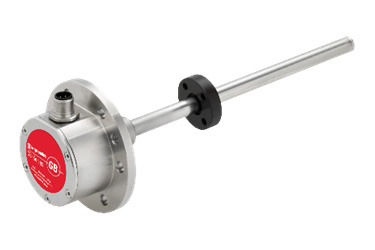

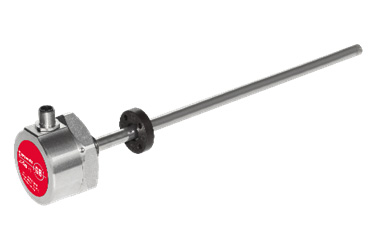

GB Sensor
With Threaded Flange
- Stroke Range: Stroke Range: 25 to 3250mm
- Output Available: Current, Voltage SSI
- Operating Temperature : -40 to +1000C
GB Sensor
With Pressure Fit Flange
- Stroke Range: Stroke Range: 25 to 3250mm
- Output Available: Current, Voltage SSI
- Operating Temperature : -40 to +1000C

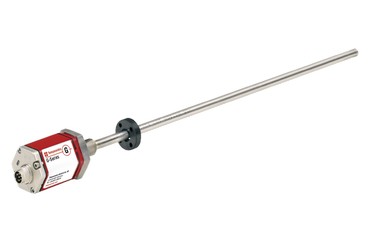

GH Sensor
- Rod-style for cylinder Integration
- Stroke Range:50 to 7620mm
- Output Available:Current, Voltage,Start/Stop, PWM
- Operating Temperature : -40 to +800C

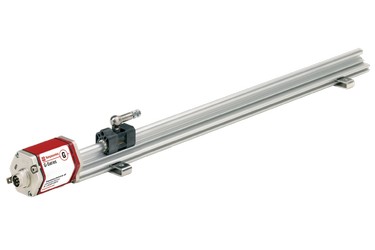

GP Sensor
- Profile-style
- Stroke Range: 50 to 5080mm
- Output Available:Current, Voltage,Start/Stop, PWM
- Operating Temperature : -40 to +800C

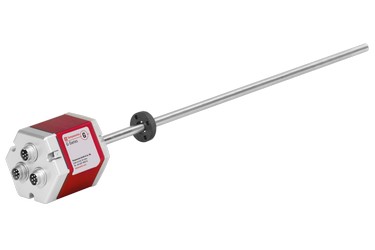

GT2/GT3 Sensor
- Rod-style with dual or triple redundant measurement
- Stroke Range: 50 to 2900mm
- Output Available: Current, Voltage.
- Operating Temperature : -40 to +750C

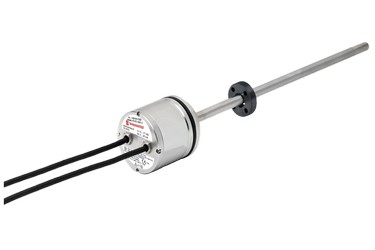

GTE Sensor
- Embedded rod-style with redundant measurement
- Stroke Range: 50 to 2540mm
- Output Available: Current, Voltage, Start/Stop, SSI, CANOpen, I/O Link.
- Operating Temperature : -40 to +750C

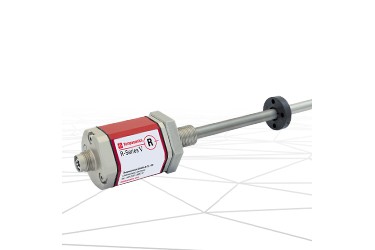

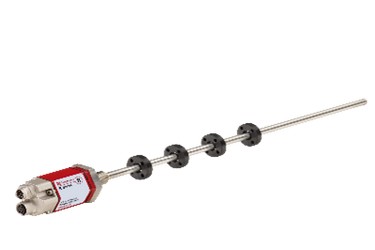

RH5 Sensor
- Rod-style for cylinder Integration
- Stroke Range: 25 to 7620mm
- Output Available: Current, Voltage, SSI ,EtherCAT, EtherNetI/P, POWERLINK,PROFINET.
- Operating Temperature : -40 to +850C

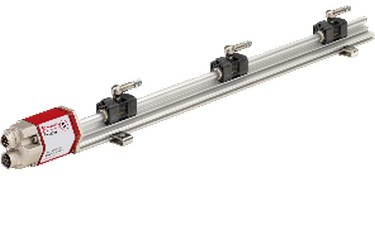

RP5 Sensor
- Profile style
- Stroke Range: 25 to 6350mm
- Output Available: Current, Voltage, SSI ,EtherCAT, EtherNetI/P, POWERLINK,PROFINET.
- Operating Temperature : -40 to +850C
RFV Sensor
- Flexible rod sensor
- Stroke Range: 150 to 20000mm
- Output Available: Current, Voltage, SSI ,EtherCAT, EtherNetI/P, POWERLINK,PROFINET.
- Operating Temperature : -40 to +850C
RDV Sensor
- With detached sensor electronics
- Stroke Range: 25 to 5080mm
- Output Available: Current, Voltage, SSI ,EtherCAT, EtherNetI/P, POWERLINK,PROFINET.
- Operating Temperature : -40 to +850C

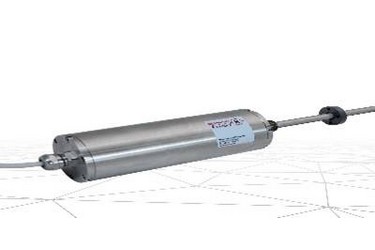

RM5 Sensor
- Super shield housing with IP68/IP69
- Stroke Range: 25 to 7615mm
- Output Available: Current, Voltage, SSI ,EtherCAT, EtherNetI/P, POWERLINK,PROFINET.
- Operating Temperature : -40 to +850C
RH Sensor
- Rod-style for cylinder Integration
- Stroke Range: 25 to 7620mm
- Output Available: Profibus, CANbus, Devicenet
- Operating Temperature : -40 to +750C
RP Sensor
- Profile-style
- Stroke Range: 25 to 5080mm
- Output Available: Profibus, CANbus, Devicenet
- Operating Temperature : -40 to +750C
RF Sensor
- Flexible sensor rod
- Stroke Range: 150 to 20000mm
- Output Available: Profibus, CANbus, Devicenet
- Operating Temperature : -40 to +750C

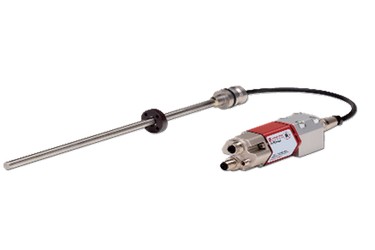

RD4 Sensor
- With detached sensor electronics
- Stroke Range: 25 to 5080mm
- Output Available: Profibus, CANbus, Devicenet
- Operating Temperature : -40 to +750C

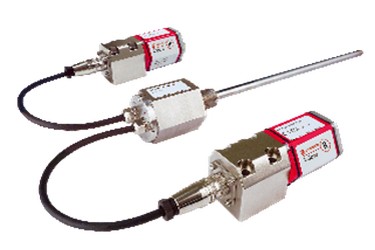

RT4 Sensor
- Redundant sensor with detached electronics
- Stroke Range: 25 to 2540mm
- Output Available: SSI
- Operating Temperature : -40 to +750C

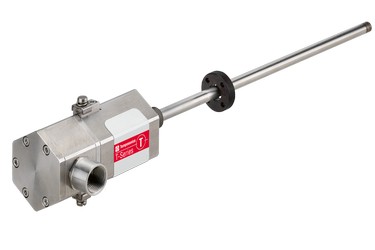

TH Sensor
- ATEX-/UK Ex-/CEC-/NEC-/IECEx-/KCs-/CCC- certified
- Stroke Range: 25 to 7620mm
- Output Available: Current, SSI, CANbus
- Operating Temperature : -40 to +750C

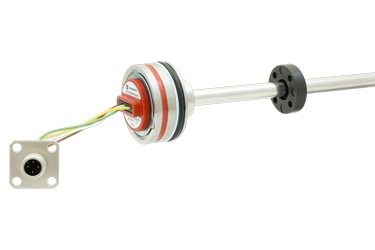

MH Sensor
- With M12 connector system
- Stroke Range: 50 to 5000mm
- Output Available: Voltage, Current, CANbus
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC

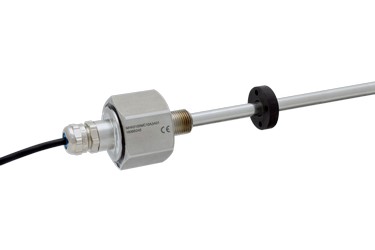

MH Threaded
- For external threaded installation
- Stroke Range: 50 to 5000mm
- Output Available: Voltage, Current, CANbus
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC
FMH Sensor
- With replaceable sensor element & electronics
- Stroke Range: 50 to 5000mm
- Output Available: Voltage, Current, CANbus
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC
MHRM Embeddable Sensor
- For in-cylinder integration
- Stroke Range: 50 to 5000mm
- Output Available: Voltage, Current, CANbus
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC
MHRM Threaded Sensor
- Redundant sensor with detached electronics
- Stroke Range: 50 to 5000mm
- Output Available: Voltage, Current, CANbus
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC

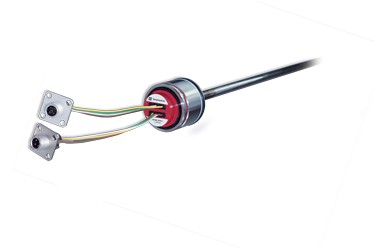

MT Sensor
- With redundant output
- Stroke Range: 50 to 5000mm
- Output Available: Voltage, Current
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC
MS Sensor
- For Smaller Bore Cylinders
- Stroke Range:
Analog :50 to 2500mm
CANbus: 50 to 1500mm - Output Available: Voltage, Current, CANbus
- Operating Temperature : -40 to +1050C
- Electrical Connection: Operating Voltage +12/24VDC

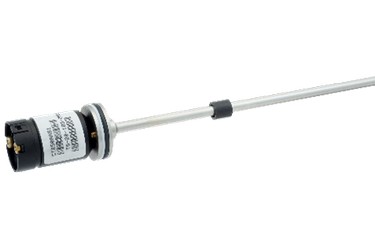

C-Series
- Off-Highway
- Stroke Range:72, 109, 128, 148, 162, 186, 194, 217, 250, 275mm
- Output Available: Analog
- Operating Temperature : -40 to +85C0C
- Electrical Connection: Operating Voltage +12/24VDC

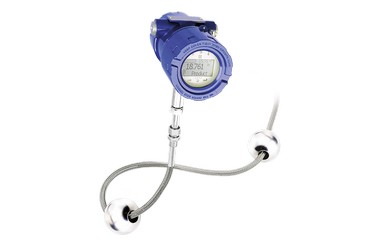

Tank SLAYER Transmitters
- Designed for bulk storage inventory monitoring
- 4-IN-1 Measurement (Product, Interface, Temperature, Volume)
- Inherent Accuarcy +/-1mm
- Flexible hose for ease of installation
- Hazardous Area certified
- Output Available: Modbus, DDA, Analog, HART
- Stroke Range: 1575 to 22000mm
- Expected life of sensor is 10 years

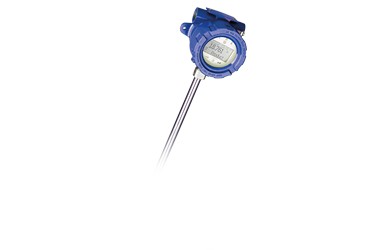

Refine ME Transmitters
- Designed for process control in industrial environment
- 4-IN-1 Measurement (Product, Interface, Temperature, Volume)
- Stainless Steel, Nickel Alloy C-276 or FEP wetted parts
- Inherent Accuarcy +/-1mm
- Hazardous Area certified
- Output Available: Modbus, DDA, Analog(4 to 20mA), HART
- Stroke Range: 305 to 7650mm
- Expected life of sensor is 10 years

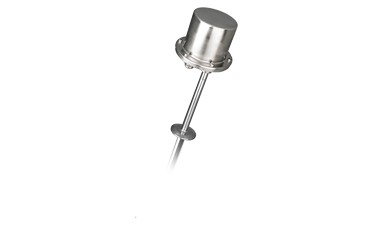

SoCLEAN Transmitters
- Developed for hygienically demanding applications
- 4-IN-1 Measurement (Product, Interface, Temperature, Volume)
- Standard Sanitary (Ra 25) or Electropolished (Ra 15) finish.
- Inherent Accuarcy +/-1mm
- 3-A Sanitary certified
- Output Available: Modbus, DDA, Analog (4 to 20mA) HART
- Stroke Range: 305 to 7620mm

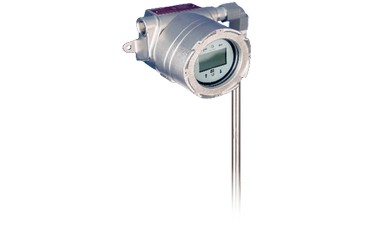

CHAMBERED Transmitters
- Designed for magnetic level gauge (MLG).
- Hazardous Area certified
- Output Available: Modbus, DDA, Analog (4 to 20mA) HART
- Stroke Range: 305 to 3657mm

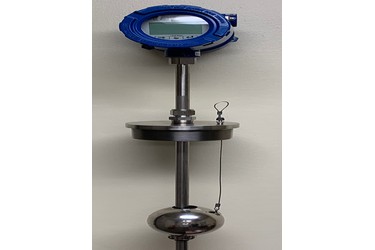

LevelLimit Transmitters
- Designed for combined tank gauging & overfill protection.
- 5-IN-1 Measurement (Product, Interface, Temperature, Volume, HI level Digital I/O)
- Integrated HI Level Digital I/O
- Level Inherent Accuarcy +/-1mm
- API Temperature Corrected Volumes
- Hazardous area certified
- Output Available: Modbus, Digital I/O
- Stroke Range: 1575 to 22000mm

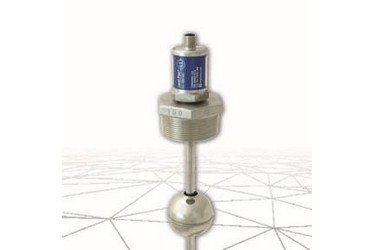

LLE Transmitters
- Designed for process control in industrial environment
- Product & Interface level
- Inherent Accuarcy +/-0.5mm
- IP69K
- 100g Shock/15g Vibration
- Optional Integral Temperature Measurement
- Output Available: Analog, SSI, CANbus, IO-link
- Stroke Range: 156 to 2646mm

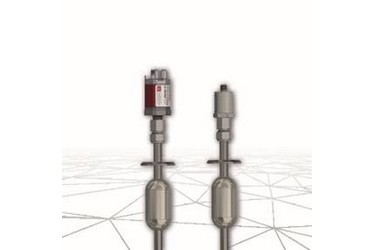

LLH Transmitters
- Designed for process control in industrial environment
- Sanitary Finish Ra 25 µin (0.64µm)
- Product & Interface level
- Inherent Accuarcy +/-0.5mm
- IP69K
- 100g Shock/15g Vibration
- Output Available: Analog, SSI, CANbus, IO-link,EtherCAT, POWERLINK, EtherNet I/P, Profinet
- Stroke Range: 127 to 2525mm
