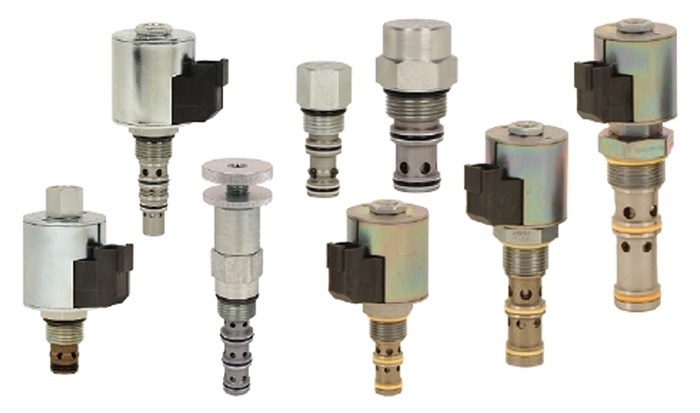

Multifunction Valves
HydraForce multifunction valves incorporate two or more functions into a single valve, allowing for the design of a lighter, more compact valve package. Multifunction valves reduce manifold size, number of ports, and machining costs, while increasing flow passage efficiency. The result is more responsive machine performance and efficient use of available horsepower.
- Directional valves with isolated load-sense checks.
- Solenoid valves with internal flow checks
- Solenoid valves with Integrated pressure relief
- Proportional flow controls with integrated pressure compensation
- Logic elements with built-in relief
- Logic elements with flow regulation
- Flow controls with adjustable pressure relief
Solenoid valve, poppet type, normally closed, load sense port
US Pat. 7,921,880| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SVCL10-30 | 240 (3500) | 57 (15) |
| SVCL16-30 | 250 (3625) | 151 (40) |
Solenoid valve, poppet type, normally closed,internal outlet flow check
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SVCV08-20 | 207 (3000) | 23 (6) |
| SVCV12-20 | 240 (3500) | 114 (30) |

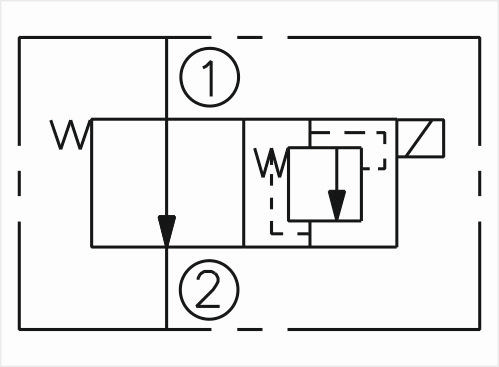

Solenoid valve,normally open integral pressure relief
US Pat. 7,137,406| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SVRV10-26 | 297 (4300) | 76 (20) |
| SVRV12-26F | 297 (4300) | 189 (50) |
Solenoid valve, poppet type, normally open,load sense port
US Pat. 7,921,880| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SVCL10-32 | 250 (3625) | 57 (15) |
Solenoid valve, poppet type, normally open,internal outlet flow check
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SVCV08-21 | 207 (3000) | 23 (6) |
Proportional flow control, normally closed, isolated load sense port
US Pat. 7,921,880| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SPCL10-30 | 250 (3625) | 57 (15) |
| SPCL16-30 | 250 (3625) | 152 (40) |
Proportional flow control, normally closed, load sense port
US Pat. 7,921,880| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SPCL10-32 | 250 (3625) | 57 (15) |
| SPCL16-32 | 250 (3625) | 152 (40) |
Piloted logic element with built-in relief
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| ECR16-S35 | 240 (3500) | 189 (50) |

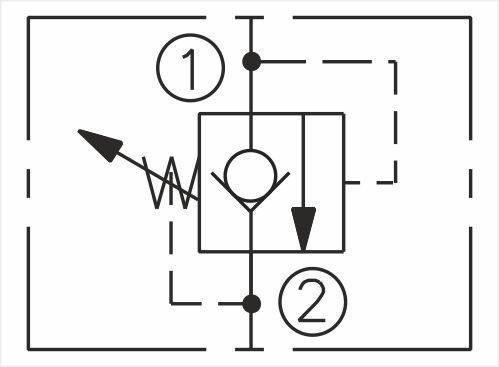

Relief valve, direct acting with anticavitation check
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RVCV10-22H | 275 (4000) | 68 (18) |
Proportional directional valve, 2-position, 4-way, normally closed, isolated load sense port
US Pat. 7,921,880| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SPCL16-40 | 250 (3625) | 152 (40) |
Logic element with flow regulator
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EPFR16-S35 | 240 (3500) | 189 (50) |
| EPFR20-S35 | 320 (4600) | 303 (80) |
| EPFR50-S35 | 345 (5000) | 76 (20) |
| EPFR52-S35 | 345 (5000) | 151 (40) |
| EPFR58-35 | 345 (5000) | 38 (10) |
Check, pilot to open, integrated thermal relief
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PC10-38 | 240 (3500) | 45 (12) |
Proportional flow control valve with integral compensator
US Pat. 7,261,030| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| HSPEC10-30 | 350 (5075) | 35 (9) |
| HSPEC12-30 | 350 (5075) | 70 (18) |
| HSPEC16-30 | 350 (5075) | 132 (35) |
Flow control with adjustable pressure relief
US Pat. 7,063,100| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FRRV10-41F | 207 (3000) | 38 (10) |
| FRRV12-41F | 207 (3000) | 76 (20) |
Proportional flow control valve with integral compensator
US Pat. 7,261,030| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| HSPEC12-34 | 350 (5075) | 61 (16) |

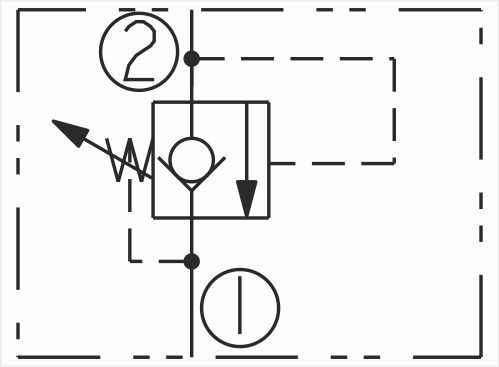

Relief valve, direct acting with anticavitation check
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RVCV56-20 | 420 (6100) | 420 (6100) |
