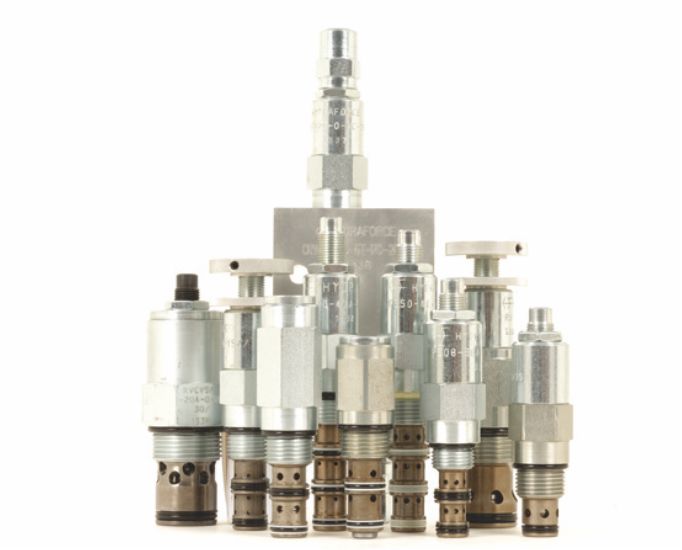

Pressure Control Valves
- Pressure relief, reducing/relieving, unloading and sequencing operations
- Industry common cavity sizes up to -16 303 lpm (80 gpm)
- Pilot-operated, direct-acting, and differential-area pressure regulators for all application conditions
- RVD valve offers fast response with low pressure rise, low hysteresis, and low internal leakage
- Operating pressures up to 350 bar (5075 psi)
- Optional spring ranges and adjustment styles
- Externally plumbed pressure reducing options
Counterbalance valve
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| CB10-30 | 207 (3000) | 19 (5) |

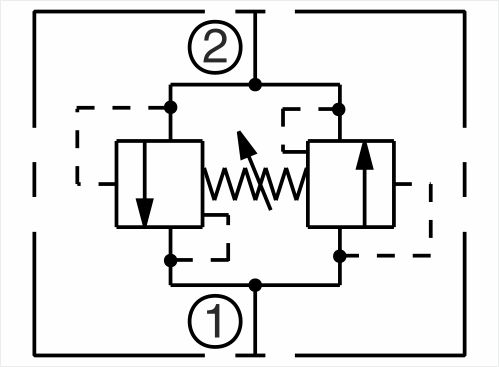

Relief valve, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| CR10-28 | 240 (3500) | 60 (16) |
Relief valve, bidirectional, vented
US Pat. 7,069,945| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| CR08-38 | 207 (3000) | 30 (8) |

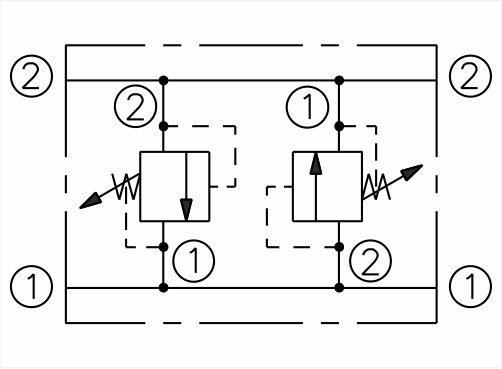

Crossover relief valve, direct acting, dual cartridges in manifold
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| CRV08-20 | 228 (3300) | 22 (6) |
| CRV10-20 | 240 (3500) | 38 (10) |

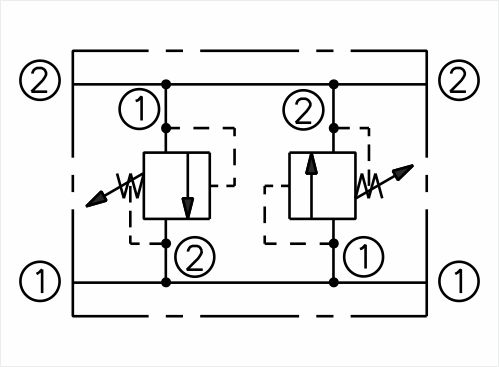

Crossover relief valve, differential area, dual cartridges in manifold
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| CRV08-22 | 180 (2600) | 30 (8) |
| CRV10-22 | 240 (3500) | 113 (30) |

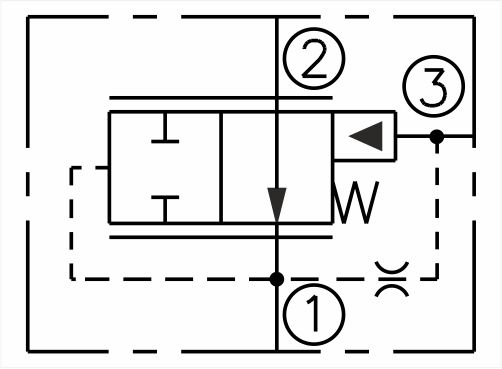

Logic element, spool type, pressure reducing
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| ER10-S30 | 345 (5000) | 68 (18) |
| ER12-S30 | 345 (5000) | 114 (30) |
Kickdown sequence valve, internal pilot/ drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| KS10-30 | 207 (3000) | 11 (3) |
Kickdown sequence valve, internal pilot/ drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| KS10-31 | 207 (3000) | 19 (5) |
Pressure reducing/relieving valve
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PR08-32 | 240 (3500) | 11 (3) |
| PR10-32 | 207 (3000) | 30 (8) |
Pressure reducing/ relieving valve, pilot operated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PR10-36 | 240 (3500) | 56 (15) |
| PR50-36 | 345 (5000) | 56 (15) |
| PR12-36 | 275 (4000) | 189 (50) |
Pressure reducing/ relieving valve, direct acting
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PR58-38 | 345 (5000) | 19 (5) |
| PR50-38 | 345 (5000) | 72 (19) |
Pressure reducing/relieving valve
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PRES50-30 | 345 (5000) | 11 (3) |
Sequence valve with internal pilot and drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS08-30 | 240 (3500) | 22 (6) |
| PS10-30 | 207 (3000) | 38 (10) |
| PS10-31 | 240 (3500) | 22 (6) |
Sequence valve with external pilot, internal drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS08-32 | 240 (3500) | 19 (5) |
| PS10-32 | 207 (3000) | 38 (10) |
| PS10-33 | 240 (3500) | 23 (6) |
Sequence valve with internal pilot and drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS10-34 | 207 (3000) | 117 (31) |
Sequence valve with external pilot, internal drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS08-35 | 240 (3500) | 19 (5) |
| PS10-35 | 138 (2000) | 56 (15) |
Sequence valve with internal pilot, external drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS10-36 | 240 (3500) | 56 (15) |
| PS50-36 | 331 (4800) | 56 (15) |
Sequence valve, normally closed with external pilot and drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS10-40 | 240 (3500) | 38 (10) |
| PS50-40 | 345 (5000) | 38 (10) |
Sequence valve, normally open with external pilot and drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS10-41 | 240 (3500) | 38 (10) |
Sequence valve, 3-way,external pilot and drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PS10-43 | 240 (3500) | 38 (10) |
Relief valve, direct acting, poppet type
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RV08-20 | 275 (4000) | 23 (6) |
| RV58-20 | 345 (5000) | 22 (6) |
| RV10-20 | 228 (3300) | 38 (10) |
Relief valve, differential area, poppet tpe
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RV08-22 | 248 (3600) | 30 (8) |
| RV10-22 | 240 (3500) | 114 (30) |
| RV50-22 | 345 (5000) | 76 (20) |
Relief valve, pilot operated, spool type
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RV10-26 | 240 (3500) | 114 (30) |
| RV50-26 | 345 (5000) | 114 (30) |
| RV12-26 | 240 (3500) | 170 (45) |
| RV16-26 | 275 (4000) | 303 (80) |
| RV52-26 | 345 (5000) | 170 (45) |
| RV56-26 | 345 (5000) | 379 (100) |
Relief valve, pilot operated with reverseflow check
U.S. Pats. 7,069,9457,069,945| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RV10-28 | 289 (4200) | 114 (30) |
| RV50-28 | 345 (5000) | 114 (30) |
Relief valve, direct acting, poppet type, low flow
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| RV08-29 | 240 (3500) | 1.9 (0.5) |
Relief valve, direct acting, poppet type
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| HRVD08-20 | 240 (3500) | 53 (14) |
| RVD50-20 | 350 (5075) | 114 (30) |
| RVD50-20P | 385 (5575) | 114 (30) |
Thermal relief valve, poppet type
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TR04-B20 | 414 (6000) | 25 (6) |
Unloading pilot, internal drain
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| UP10-31 | 207 (3000) | 4 (1) |
Remote sequence valve, unloading pilot
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| UP10-40 | 207 (3000) | 4 (1) |
