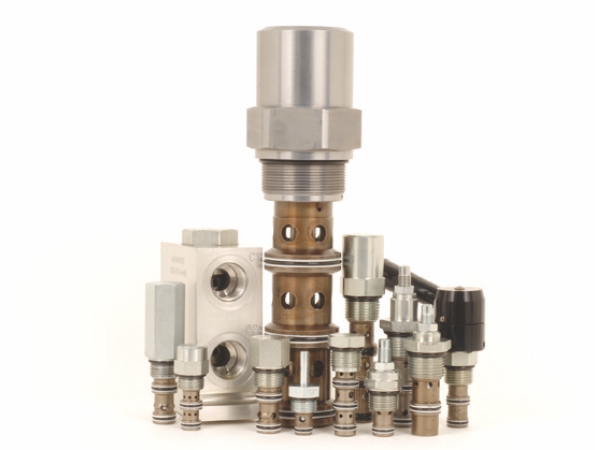

Flow Control Valves
- Variable or fixed orifice restrictor valves
- Pressure compensated flow regulators
- Pressure compensators for restrictive, bypass and priority circuits, with load-sensing system compatibility
- Optional settings and adjustment styles available
- Flow dividers/combiners for cylinder synchronizing and anti-stall applications
- Industry common cavity sizes

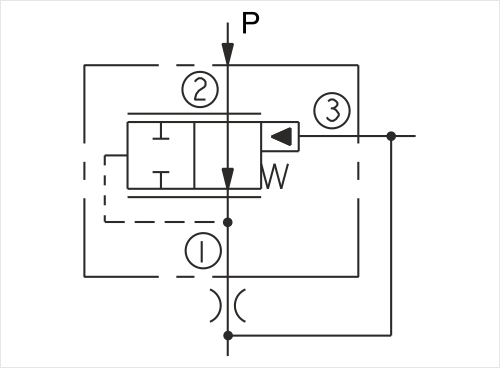

Pressure compensator
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC10-30 | 207 (3000) | 30 (8) |
| EC12-30 | 240 (3500) | 58 (15) |
| EC50-30 | 345 (5000) | 30 (8) |
Pressure compensator
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC10-S31 | 240 (3500) | 30 (8) |
Pressure compensator
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC08-32 | 240 (3500) | 11 (3) |
| EC10-32 | 207 (3000) | 38 (10) |
| EC12-32 | 240 (3500) | 57 (15) |
| HEC12-32 | 350 (5075) | 83 (22) |
| EC16-32 | 240 (3500) | 152 (40) |
| HEC16-32 | 350 (5075) | 151 (40) |
Pressure compensator
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC12-34 | 240 (3500) | 83 (22) |
| HEC12-34 | 350 (5075) | 83 (22) |
| EC16-34 | 240 (3500) | 170 (45) |
Pressure compensator,bypass type
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC10-40 | 207 (3000) | 38 (10) |
| EC12-40 | 240 (3500) | 80 (21) |
| EC16-40 | 240 (3500) | 180 (48) |
| EC42-M40 | 240 (3500) | 303 (80) |
| EC50-40 | 240 (3500) | 38 (10) |

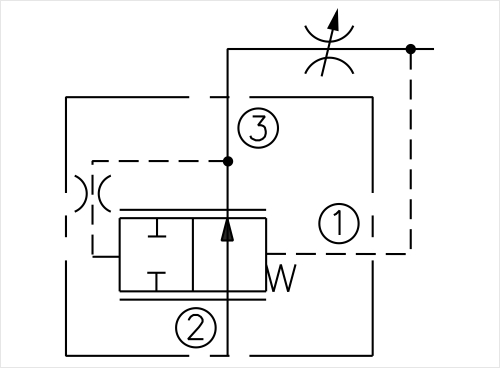

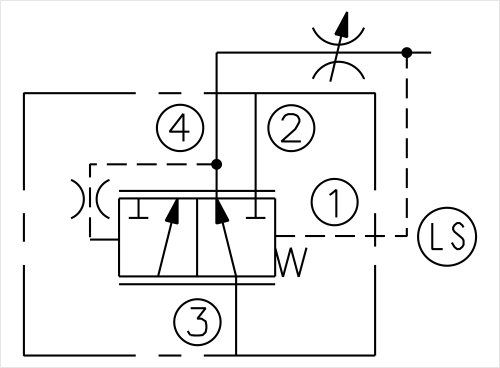

Pressure compensator with static load sense
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC10-42 | 240 (3500) | 38 (10) |
| EC12-42 | 345 (5000) | 76 (20) |
| HEC12-42 | 350 (5075) | 95 (25) |
| EC16-42 | 240 (3500) | 190 (50) |
| EC42-M42 | 240 (3500) | 303 (80) |
| EC50-42 | 345 (5000) | 38 (10) |

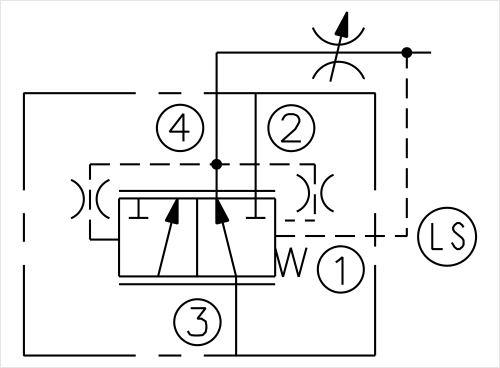

Pressure compensator with dynamic load sense
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EC10-43 | 240 (3500) | 34 (9) |
| EC50-43 | 345 (5000) | 45 (12) |
| EC12-43 | 345 (5000) | 95 (25) |
| HEC12-43 | 350 (5075) | 95 (25) |
| EC16-43 | 240 (3500) | 190 (50) |
| HEC32-43 | 350 (5075) | 530 (140) |
| EC42-M43 | 240 (3500) | 303 (80) |

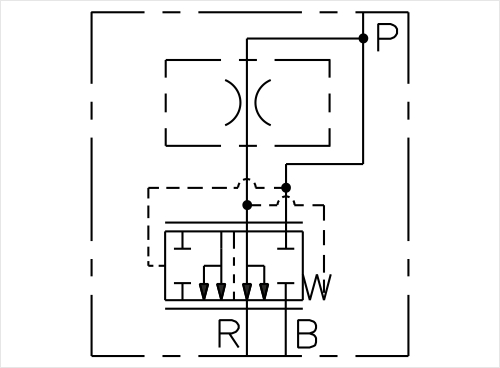

Pressure compensator,in line body
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| ECV10-44 | 207 (3000) | 38 (10) |

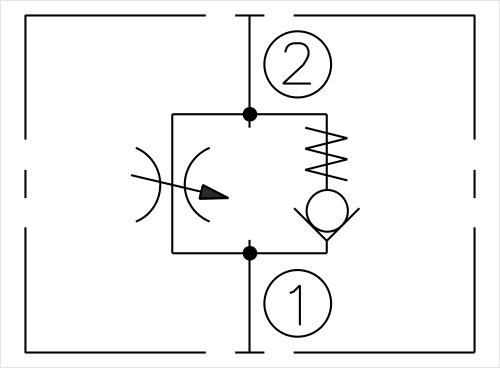

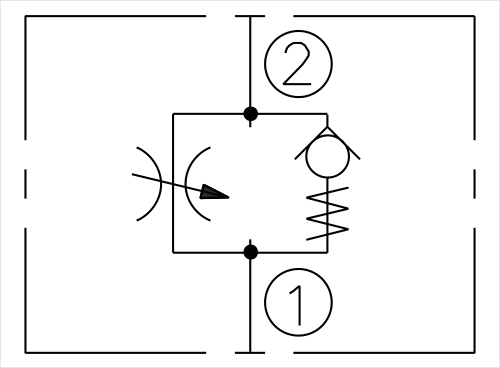

Flow control with reverse flow check
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FC10-20 | 240 (3500) | 45 (12) |
| FC12-20 | 240 (3500) | 129 (34) |
| FC08-20F | 240 (3500) | 45 (12) |
Flow control with reverse flow check
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FC10-21 | 240 (3500) | 57 (15) |

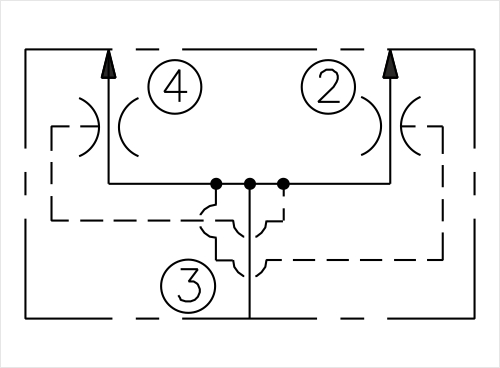

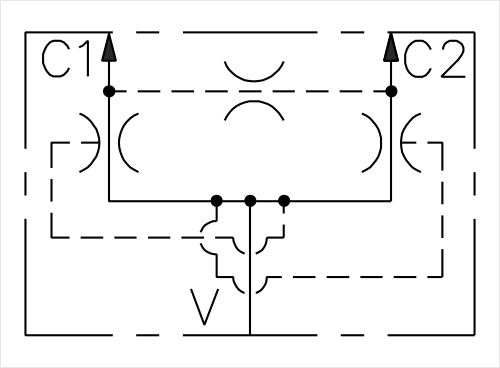

Flow divider/combine
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FD10-40 | 240 (3500) | 45 (12) |
| FD12-40 | 240 (3500) | 91 (24) |
| FD16-40 | 240 (3500) | 150 (40) |
Flow divider/combiner,cylinder synchronizing
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FD10-41 | 240 (3500) | 45 (12) |
| FD12-41 | 240 (3500) | 91 (24) |
Flow divider/combiner,anti-stall
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FD10-42 | 240 (3500) | 61 (16) |
| FD16-42 | 240 (3500) | 151 (40) |
Flow divider/combiner,multifunction
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FD50-45 | 345 (5000) | 57 (15) |
| FD52-45 | 345 (5000) | 106 (28) |
| FD56-45 | 345 (5000) | 197 (52) |
Flow divider/combiner,cartridge in manifold
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FDC16 | 207 (3000) | 151 (40) |
Flow regulator,pressure compensated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR08-20F | 240 (3500) | 8 (2) |
| FR10-20F | 240 (3500) | 23 (6) |
| FR50-20F | 345 (5000) | 23 (6) |
| FR12-20F | 345 (5000) | 55 (15) |
| FR16-20F | 240 (3500) | 113 (30) |
Manual rotary flow control
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| MR10-20 | 240 (3500) | 53 (14) |
Flow regulator,pressure compensated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR12-23) | 240 (3500) | 77 (20 |
Flow regulator,pressure compensated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR50-23 | 345 (5000) | 12 (3) |
| FR50-28 | 345 (5000) | 34 (9) |
Flow regulator,pressure compensated,priority bypass type,adlustable
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR10-30A | 207 (3000) | 23 (6) |
Flow regulator,pressure compensated,priority bypass type
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR08-30F | 207 (3000) | 11 (3) |
| FR10-30F | 207 (3000) | 38 (10) |
| FR12-30F | 240 (3500) | 95 (25) |
| FR16-30F | 240 (3500) | 113 (30) |
Flow regulator,pressure compensated,with adjustable orifice
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR10-32 | 240 (3500) | 19 (5) |
| FR12-32 | 240 (3500) | 50 (13) |
Flow regulator,pressure compensated,fixed orifice
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR10-32F | 240 (3500) | 19 (5) |

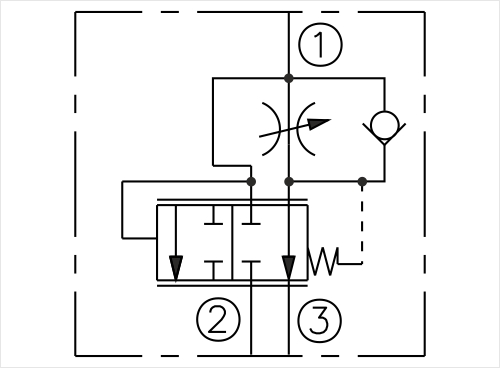

Flow regulator,pressure compensated,bypass type, with adjustable orifice
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| FR10-33 | 240 (3500) | 26 (7) |
| FR12-33 | 240 (3500) | 114 (30) |
| FR10-39 | 240 (3500) | 57 (15) |

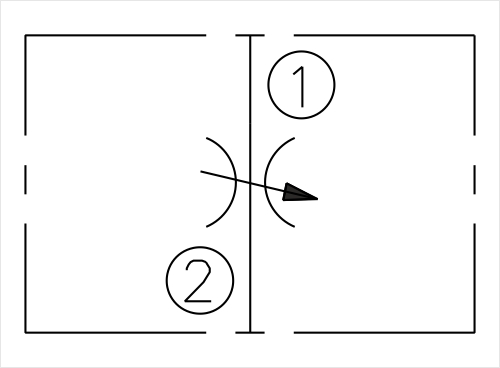

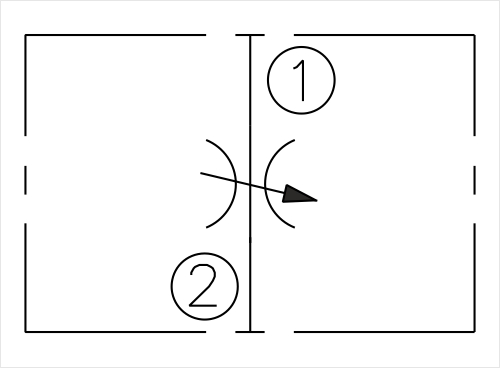

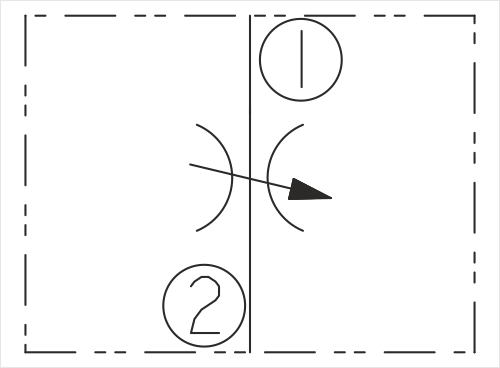

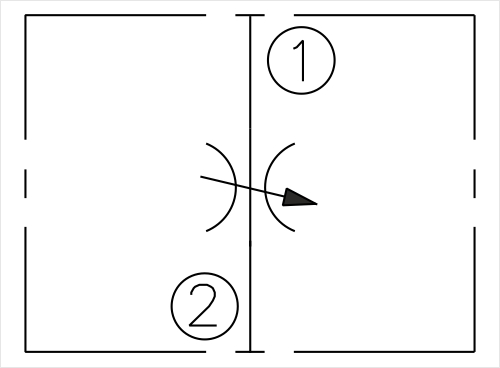

Needle valve
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| NV08-20 | 240 (3500) | 42 (11) |
| NV10-20 | 240 (3500) | 45 (12) |
| NV12-20 | 240 (3500) | 114 (30) |
| NV10-22 | 240 (3500) | 57 (15) |
Needle valve, positive shut-off
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| NV08-21 | 240 (3500) | 38 (10) |
| NV10-21 | 240 (3500) | 57 (15) |
Needle valve, fine adjustment
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| NV08-23 | 240 (3500) | 38 (10) |
