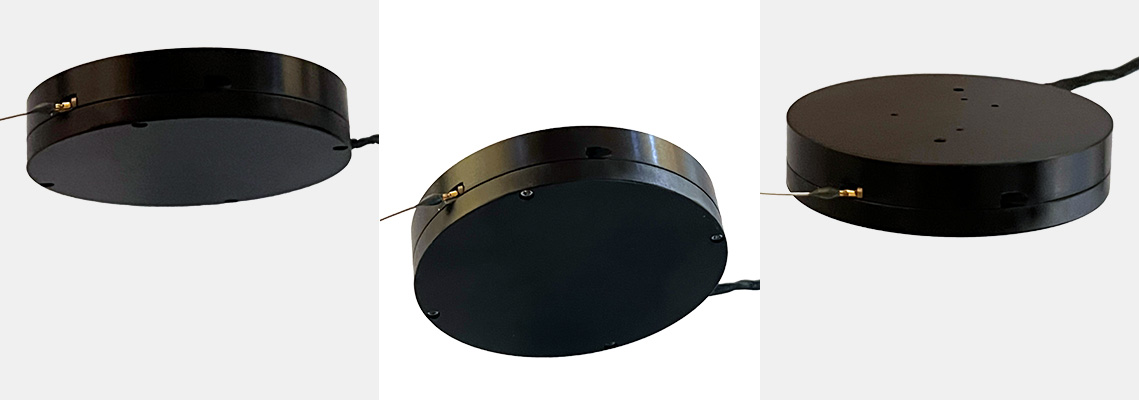

Wire Draw Potentiometer
Key Features
- 6.5-Inch (165-mm) Maximum Travel (Series 165)
- Analog Signal Using Precision Conductive Plastic Potentiometer
- Bearing-Mounted Rotating Components
- Optional Flexible Mounting Bases
- Zero Backlash, No Torsion Springs or Clutches

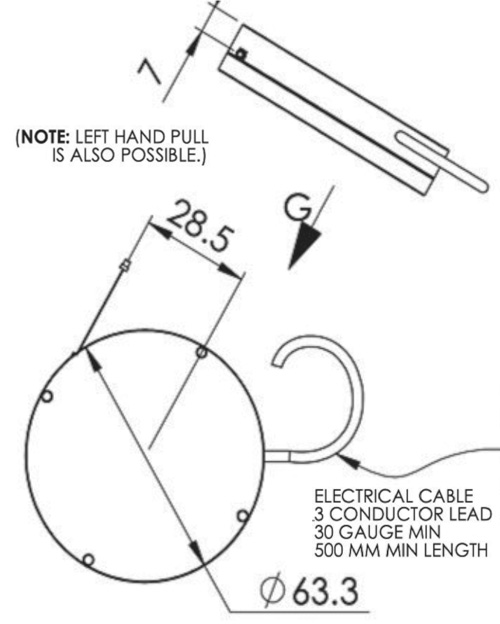

Specifications
| Potentiometer Type | 1-turn conductive plastic precision potentiometer |
| Resistance: | Value 5K ohms, Tolerance , ±10% |
| Travel: | 165mm max Electrical 340°, Mechanical , 340° |
| Mechanical Life | 1 Million cycles |
| Output Signal | analog signal from 0 to supply voltage (voltage divider circuit) |
| Power Rating | 1.0 W at 158° F (70° C) |
| Supply Current | 12 mA max |
| Supply Voltage | 35 VDC max (using voltage divider circuit) |
| Independent Linearity Error | ±0.5% max per VRCI-P-100A |
| Output Smoothness | 0.1% max |
| Insulation Resistance | 1000 Mohms at 500 VDC min |
| Dielectric Strength | 1000 VDC min |
| Resolution | infinite signal |
| Electrical connections | White – Output Blue - Excitation |
